What is Vortex Mixer?

Vortex mixer is characterized by simple and reliable structure, small volume, low power consumption and low noise. It is widely used in biochemistry, genetic engineering, medicine and other experimental requirements. It can be required to mix any liquid, powder in a high-speed vortex type rapid mixing, mixing speed is fast, uniform, thorough.

Features

  • Rotating speed up to 2800RPM;
  • Eccentric ball shaft design, vibration head easy to install;
  • Soft silicone foot pad, prevent the instrument from moving during high speed vibration, compact shape, shockproof, suitable for high speed work;
  • Small size, low power consumption, low noise;
  • The body uses enhanced engineering plastic molding technology, the body has no paint spraying, acid and alkali resistance and collision resistance;
  • The working table is made of TPU material which is resistant to corrosion, abrasion and safety, changing the characteristics that the original sponge table is easy to be damaged;
  • The instrument integrates the functions of continuity, touch, continuity and speed regulation, providing a fast operating platform for the experiment.

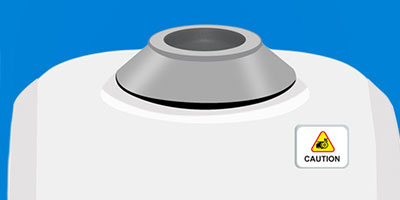

Made of High-quality Rubber

Wear resistance / anti-corrosion / anti-oxidation / longer use time

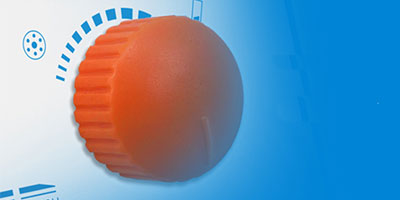

Knob Operation

Convenient and easy to control side non-slip design

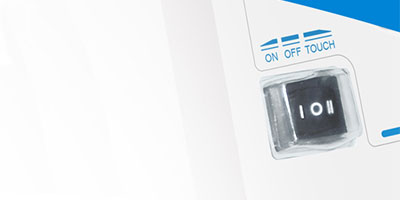

Touch/Continuous One-kay Switch

Easily respond to different experimental requirements

Vortex Mixer Model Introduction

Model

Speed Range

Shaking Mode

Orbital Diameter

Operation Mode

Standard Head

Vortex-1

2800rpm(Fixed)

Orbital Shaking

4mm

Touch/

Continuous Running

20010001

Vortex-2

0-2800rpm

Orbital Shaking

4mm

Touch/

Continuous Running

20010001

Optional Working Head for Vortex Mixer

Item No

Specifications

Scope of Application

20010001

Standard head

For test tubes and containers with a diameter of 30mm

20010002

General disc

Φ100

20010003

Holding poles

Test-tube adapter

20010004

4 hole Φ26mm

Test-tube adapter

20010005

48 hole Φ6mm

Test-tube adapter

20010006

15 hole Φ10mm

Test-tube adapter

20010007

12 hole Φ12mm

Test-tube adapter

20010010

8 hole Φ20mm

Test-tube adapter

20010011

Flat gasket

For test tubes and containers with diameter less than 99mm

20010013

8 hole Φ16mm

Test-tube adapter
