What is Thermostatic Dry Bath Shaker?

The constant temperature integrates three functions of mixing, shaking, incubation heating and the concept of intelligent operation. Not only can it mix all kinds of microtubes, PCR plates, deep well plates and microwell plates and other common laboratory consumables, but also have the function of heating and incubating various modules.

Features

  • LCD liquid crystal display, man-machine friendly touch operation interface;
  • Power off recovery function, power off recovery can be automatically resumed according to the original program;
  • Microprocessor control temperature, speed and time, temperature control linear, accurate oscillation speed, small fluctuation;
  • Brushless DC motor drive, long life, maintenance free;
  • Metal module can protect the sample from contamination;
  • Metal modules can be easily replaced, easy to clean and disinfect;
  • With timing function, 0~100 hours to set incubation time;
  • Temperature deviation calibration function;
  • Built-in overtemperature protection device;
  • Automatic fault detection and buzzer alarm function;
  • Beautiful appearance, blue LIQUID crystal display instant parameter information, touch operation interface.

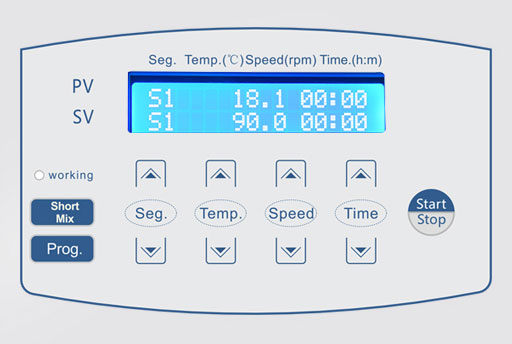

LCD Screen

Thermostatic Dry Bath Shaker Model Introduction


Model

Type

Time Setting

Oscillation Speed

Amplitude of Oscillation

Standard Module

HX-20T

RT+5~100℃

1min-100h

200~1800rpm

2-3mm (horizontal rotation)

35*2.0ml

HX-20TL

0~100℃

1min-100h

200~1800rpm

2-3mm

(horizontal rotation)

35*2.0ml

Optional Module for HX-20T HX-20TL

Model

Hole Diameter / Hole Depth

Module specification

Module size (L*W*H)

HX-A

6.3/17mm

96 Holes*0.2ml centrifuge tube

107*71*27mm (20 holes)

HX-B

8.1/24mm

54 Holes*0.5ml centrifuge tube

107*71*25mm

HX-C

10.5/31mm

35 Holes*1.5ml centrifuge tube

107*71*32mm

HX-D

10.7/31mm

35 Holes*2.0 mL centrifuge tube

107*71*32mm

HX-E

8.1/26mm
10.5/31mm

20 Holes*0.5ml+15 Holes*1.5ml centrifuge tube

107*71*27mm (20holes)
107*71*32mm(15holes)

HX-F

12/31mm

24 holes *2ml injection bottle

107*71*32mm

HX-G

6.3/15mm
10.5/31mm

32 Holes*0.2ml+25 Holes*1.5ml centrifuge tube

107*71*19mm(32holes)
107*71*32mm(25holes)

HX-H

6.3/17mm
8.1/20.5mm
10.5/31mm

32 Holes*0.2ml+10 Holes*0.5ml+
15 Holes*1.5ml centrifuge tube

107*71*19mm (32holes)
107*71*27mm(10holes)
107*71*32mm (15holes)

HX-J

Tabletmm

96-Holes*0.2ml (microplate)

107*71*19mm

HX-K

13.5/40mm

24 Holes* 5mL centrifuge tube

107*71*42mm

HX-L

16.9/99

12 Holes* 15mL centrifuge tube

107*71*100mm

HX-M

29.5/90

6 Holes*50ml centrifuge tube

107*71*100mm

HX-N

16/55

15 Holes*10ml centrifuge tube

107*71*58mm
