What is Pulse Multiple Tube Vortex Mixer?

HT-200 pulse multi-tube vortex mixer adopts microprocessor control and pulse working mode. Each buffering process is an acceleration process, HT-200 is suitable for experiments that require higher mixing strength. The unique knob operation mode is simple and easy to use. By changing different test tube fixing sponges, various commonly used test tubes can be mixed and cultivated, up to 50 samples can be mixed at one time. It is mainly suitable for the inspection of pesticide residues, veterinary drug residues, food additives, drug analysis, drug development and other scientific fields in food safety. It shows unparalleled advantages when processing a large number of parallel samples, saving time and effort, and automatic mixing improves the experimental method. Repeatability and the recovery rate of the tested sample.

Features

  • One-key knob operation mode, easy to use;
  • Can choose pulse mode, jog mode, timing mode, continuous mode;
  • Set any time within the range of 1min~ 99H59min, automatically beep after running;
  • A variety of sponge test tube racks are available; a variety of sponge test tube racks, widely used;
  • Soft start, Uniform acceleration, effectively avoid spatter;
  • Brushless DC motor drive, accurate speed, long life, maintenance free;
  • It can process up to 50 test samples at one time, making the experiment efficient and fast.
  • Simple operation panel, precise control of micro processing capacity, LED real-time display speed and time.

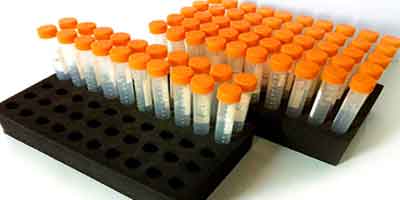

Sponge Test Tube Rack

Max capacity of 50 samples.

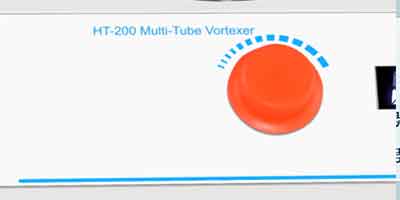

Operating Mode

One-button knob operation mode, easy to use.

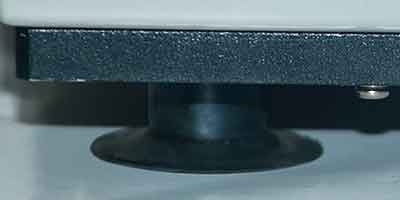

Base

Rubber base, four suction cup bases, more stable operation.

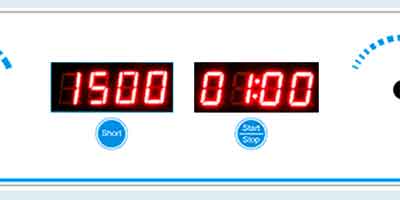

Display Screen

LED big screen, display all running information and setting information in real time.

Pulse Multiple Tube Vortex Mixer Model Introduction

Model

Mode

Speed

Amplitude

Maximum Load

Standard Module

HT-200

Pulse, Touch, Timing, Continuously

500-2500rpm

4mm horizontal rotation

5.5kg

HT200-T26

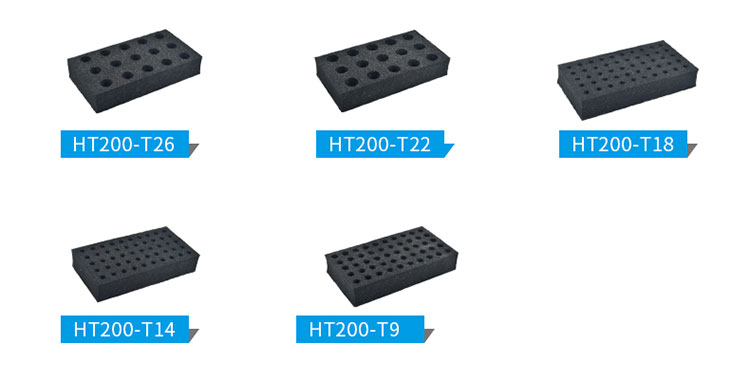

Optional Module for Pulse Multiple Tube Vortex Mixer

Module

Item No

Specifications

Scope of Application

HT200-T26

20010021

15*φ26mm

Suitable for outside diameter of test tube:26~32mm

HT200-T22

20010022

15*φ22mm

Suitable for outside diameter of test tube:22~25 mm

HT200-T18

20010023

50*φ18mm

Suitable for outside diameter of test tube:18~21 mm

HT200-T14

20010024

50*φ14mm

Suitable for outside diameter of test tube:14~17mm

HT200-T9

20010025

50*φ9mm

Suitable for outside diameter of test tube:9~13mm
