What is Multifunctional Benchtop Shaker?

The new generation of multifunctional table shaker use DC brushless motor and microcomputer control technology. The unique knob operation mode is simple and easy to use. By changing different trays, it is fine for mixing and culturing various commonly used flasks, petri dishes, and beakers. Suitable for biology technology, microbiology and medical analysis, coloring or decoloring of colloids and combinatorial chemistry and other fields. The heating series models integrates oscillation and heating functions. solve the problem that the sample which need heating fast and fully open at the same time, rotate or reciprocate, mix and cultivate the sample.



Application: food microbiology, analysis of animal tissues, biological samples, homogenization treatment of cosmetics, meat, fish, vegetables, fruits Processing; Drug, clinical, molecular, toxin and bacteria detection and other fields.

Features

  • The large-screen LCD displays the set time, speed, and temperature value, and the operation interface is simple and easy to understand;
  • Locking operation mode to prevent mis operation;
  • Driven by DC brushless motor, low noise, precise speed, long service life and maintenance-free;
  • A variety of trays, cradles, and fixtures are available for a wide range of needs;
  • Easy replacement of accessories, greatly improving work efficiency;
  • Soft start, uniform acceleration, effectively avoid sample splashing;
  • Optional RS232 interface, connect to the computer through the RS232 interface, can realize the computer end-to-end;
  • Setting of instrument parameters and real-time display of working curve;
  • The heating series has fast heating speed, wide temperature range, and the highest temperature can reach to 100C, which can make shaker operating at high temperature.

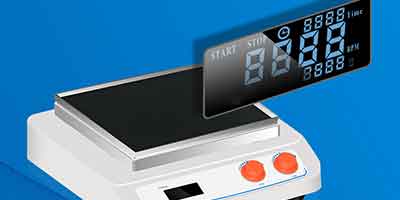

LCD Screen

Simultaneous display of speed and time

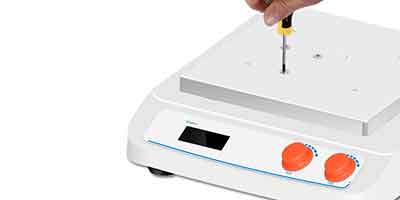

Easy to Disassemble

A screwdriver interface is completely installed and removed, and the screw can be fixed.

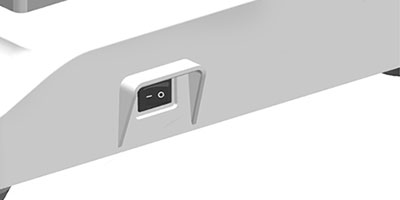

Power Switch with Cover

Prevents power shorts from corroding switches in the event of liquid spills.

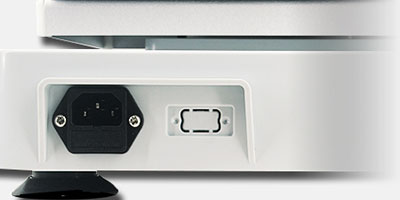

Three Pin Plug

The three-plug power connector in more secure and has an RS232 interface. If you need it, you can communicate with customer service to customize it.

HT Series Multifunctional Benchtop Shaker Model Introduction

Model

Shaking Model

Temperature Range

Amplitude

Max Load

Speed Range

HT-X330

Orbital shaking

None

8MM

7.5KG

60~400rpm

HT-W330

Reciprocating

None

8MM

7.5KG

60~400rpm

HT-X330G

Orbital shaking

RT+5~100℃

8MM

7.5KG

60~400rpm

HT-W330G

Reciprocating

RT+5~100℃

8MM

7.5KG

60~400rpm

Optional Tray for Multifunctional Benchtop Shaker

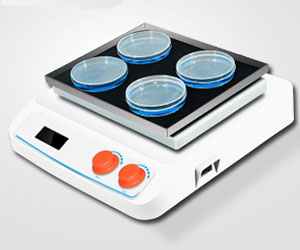

Universal Tray

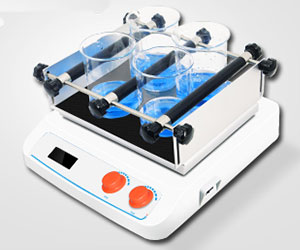

Adjustable Tray

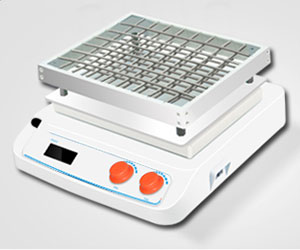

Spring Tray

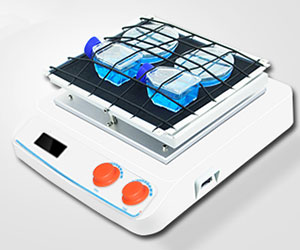

Fixed Tray

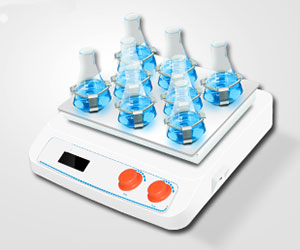

Flask Clamp Tray

Tray Name

Item No

Specification

Remark

Universal Tray

20240007

210*282mm

can hold multiple petri dishes or screw top cell culture dishes crooked neck flasks

Adjustable Tray

20240008

210*282mm

hold 4*500ml flasks

Spring Tray

20240009

210*282mm

hold 6*200ml conical flasks

Fixed Tray

20240010

210*282mm

can hold multiple petri dishes or screw top cell culture dishes crooked neck flasks

Flask Clamp Tray

20240011

6*250ml

can hold 6*250ml conical flasks

Flask Clamp Tray

20240012

8*100ml

can hold 8*100ml conical flasks

Flask Clamp Tray

20240013

8*50ml

can hold 8*50ml conical flasks

Flask Clamp Tray

20240014

8*25ml

can hold 8*25ml conical flasks
