It is a multifunctional and multi-purpose instrument that uses ultrasonic waves to produce cavitation effect in liquid. Used for cell pulverization, emulsification, dispersion, homogenization, extraction, defoaming, cleaning, preparation of nanomaterials and acceleration of chemical reactions.
What is Lab Ultrasonic Homogenizer?
Features
- Use single-chip microcomputer technology + 4.3-inch TFT capacitive touch screen control (optional 7-inch optional), and can be equipped with computer communication or data printing functions.
- High degree of intelligence, centralized control by central computer, ultrasonic time, power can be set from 1% -100%.
- Sample temperature detection display, frequency microcomputer automatic tracking, fault automatic alarm.
- With overload protection function and the horn is not immersed in the liquid, it will automatically protect the horn from damage.
4.3-inch TFT Touch Screen
Sound Proof Box
Overload Protection
Front Lift Table
Sound Insulation Cotton
Magnetic Strip Seal
Titanium Alloy Horn
Lab Ultrasonic Homogenizer Model Introduction
Model | Volume | Power | Standard Horn | (optional) | |
JY96-IIN | 0.1-150ml | 1.5~150W | φ6mm | φ2、3、6、8、10mm | |
JY88-IIN | 0.1-300ml | 2.5~250W | φ6mm | φ2、3、6、8、10mm | |
JY92-IIN | 0.1-500ml | 10~650W | φ6mm | φ2、3、6、8、10、12mm | |
JY92-IIDN | 0.1-600ml | 10~900W | φ6mm | φ2、3、6、8、10、12、15mm | |
HX-IID | 0.1-750ml | 10~1000W | φ6mm | φ2、3、6、8、10、12、15、22mm | |
JY98-IIIDN | 1-1000ml | 20~1200W | φ20mm | φ3、6、8、10、15、20、22、25mm | |
JY99-IIDN | 1-1200ml | 50~1800W | φ22mm | φ6、8、10、15、20、22、25mm |

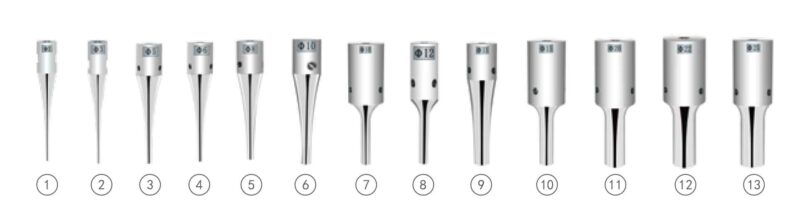

Lab Ultrasonic Homogenizer Horn Choice Guide
Horn No. | Dia (mm) | Capacity (ml) | JY96-IIN | JY88-IIN | JY92-IIN | JY92-IIDN | HX-IID | JY98-IIIDN | JY99-IIDN |
No.1 | φ2 | 0.2-5 | √ | √ | √ | √ | √ | ||
No.2 | φ3 | 3-10 | √ | √ | √ | √ | √ | √ | |
No.3 | φ5 | 5-100 | |||||||
No.4 | φ6 | 10-100 | √ | √ | √ | √ | √ | √ | √ |
No.5 | φ8 | 20-200 | √ | √ | √ | √ | √ | √ | √ |
No.6 | φ10 | 30-300 | √ | √ | √ | √ | √ | ||
No.7 | φ10 | 30-300 | √ | √ | |||||
No.8 | φ12 | 50-600 | √ | √ | √ | ||||
No.9 | φ15 | 200-750 | √ | √ | |||||
No.10 | φ15 | 50-500 | √ | √ | |||||
No.11 | φ20 | 100-1000 | √ | √ | |||||
No.12 | φ22 | 200-1200 | √ | √ | √ | ||||
No.13 | φ25 | 300-1200 | √ | √ |
