JRJ high speed shear dispersing emulsifier is driven by series excited micro high-speed motor with compact structure. It is suitable for mixing low to medium and high viscosity liquid and pulverizing granular materials in liquid medium for shear emulsification. The machine is composed of high-density die-casting aluminum alloy as the driving motor, high quality stainless steel refined shear emulsification working head and speed regulating controller, etc.
What is Shear Dispersing Homogenizer?
Features
- Stepless governor is adopted in the operation state controller, and touch structure is adopted in the digital display type, which makes the speed regulation convenient and the data correct;
- The driving motor with ality large output power and compact structure, which is safe and reliable in design;
- Shear emulsification mixing head is made of high quality stainless steel with good corrosion resistance and easy dismantling of interchangeable stator;
- The working head is connected with the driving motor with shaft joint, running stably at high speed.

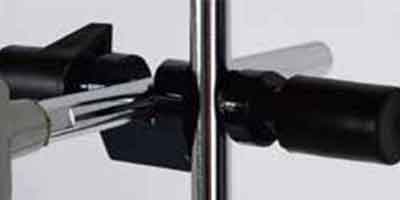

Securing Clip
Flexible Securing clip, height adjustable.

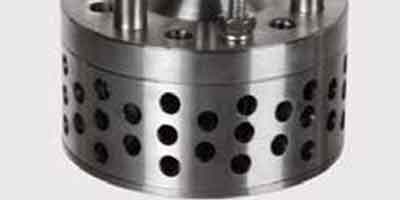

Mixing Working
Heads With stainless steel Material, Good corrosion resistance, high mixing efficiency, multi-configuration stator extended application range.

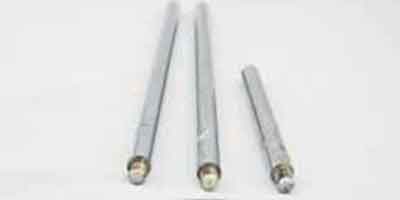

Stainless Steel Column
Each product is equipped with stainless steel columns, which are not easy to rust, durable and easy to clean.

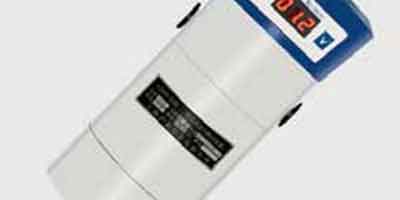

Aluminum Metal CaseC
Ensure mechanical precision for long-lasting use; ensure electrical performance for continuous use; ensure stable operating conditions and low noise.
JRJ Shear Dispersing Homogenizer Model Introduction
Photo | Model | Processing Volume | Speed Range | Rated Torque | Working Head Diameter | Stator | |
 | JRJ300-D-1 | 40L | 200-11000rpm | 34.1N. cm | Φ70mm | 5，20，50 mm² | |
 | JRJ300-SH (Digital Display) | 40L | 200-11000rpm | 34.1N. cm | Φ70mm | 5，20，50 mm² |
