The intelligent ultrasonic homogenizer is suitable for the processing of samples of different volumes (select corresponding models and probes according to different volumes). It can crush all kinds of animal and plant tissues, cells, bacteria, and can be used to emulsify, separate, disperse, extract, clean and accelerate chemical reactions, etc. It is widely used in the fields of life science, material science and environmental protection.
What is Intelligent Ultrasonic Homogenizer?
Features
- With over-temperature, overload and time alarm functions;
- External transparent front door;
- Stackable design saves lab space;
- Ultrasonic time and power are continuously adjustable, with good stability;

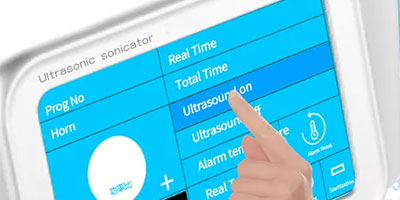

7 Inch Touch Screen

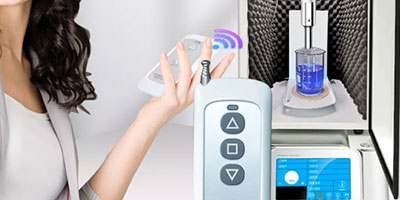

Remote Control (HX-650E/1000E)
Transducer Housing
The transducer is provided with a shell, which is convenient to be fixed.
Overload Protection
The horn will not work when it is not invaded in the liquid.
Alcoa 7075 Transducer Assembly
Longer use time safe and not easy to damage.
High Purity Titanium Alloy Horn
Can work continuously for about 1 hour, safe and durable.
Lifting Remoter Control
High Temperature Lighting
UV Sterilization Lamp
Sound Insulation Cotton
HX Series Intelligent Ultrasonic Homogenizer Model Introduction
Photo | Model | Volume | Power | Standard Horn | (optional) | |
 | HX-650 (Basic Type) | 0.1-600ml | 6.5~650W | φ6 | Φ2、3、10、12mm | |
| | HX-650E (Illumination Sterilization Type) | 0.1-600ml | 6.5~650W | φ6 | Φ2、3、10、12mm | |
 | HX-1000 (Basic Type) | 0.1-800ml | 10~1000W | φ6 | Φ2、3、10、12、15mm | |
| | HX-1000E (Illumination Sterilization Type) | 0.1-800ml | 10~1000W | φ6 | Φ2、3、10、12、15mm |

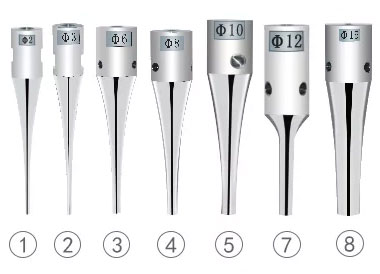

Optional Horns
Horn No. | Diameter | Capacity | HX-650 HX-650E | HX-1000 HX-1000E |
No.1 | φ2mm | 0.2-5ml | √ | √ |
No.2 | φ3mm | 3-10ml | √ | √ |
No.3 | φ6mm | 10-100ml | √ | √ |
No.4 | φ8mm | 20-200ml | √ | √ |
No.5 | φ10mm | 30-300ml | √ | √ |
No.7 | φ12mm | 50-600ml | √ | √ |
No.8 | φ15mm | 200-750ml | √ |
