High-shear homogeneous emulsifier is flexible and convenient. It can be operated by hand. More than 20 kinds of working heads are available for selection, with optional vacuum working head, which can realize vacuum operation and easily meet various high requirements of dispersing, emulsifying and homogenizing experiments. It can be used in the fields of biomedicine, gene research, tissue breakage, cytoplasm, pathological analysis, oil-water emulsification, nanomaterial dispersion, dairy homogenization, polymerization reaction, daily cosmetics, ink coating, fine chemical industry, pesticide, mineral exploration, environmental protection, energy and so on.
What is High Shear Homogenizing Emulsifier?
Features
- Imported original motor, stable operation, less noise, long time operation, safe and reliable design;
- All parts of working head contacting materials are made of high-quality stainless steel with good corrosion resistance;
- The working head is connected with the driving motor by a coupling, which is easy to disassemble and assemble;
- The step less governor use the speed regulating frame, which is convenient for speed regulation and stable operation;
- The speed is adjustable in 6 gears continuously to ensure good dispersion effect.
High Shear Homogenizing Emulsifier Model Introduction
Model | Volume | Speed | Standard Working Head | Applicable Temperature | Optional Accessory | |
HR-500 | 0.2-7000ml | 8000-28000rpm | HR500-25G | ≤120℃ | Single Column Support Double Column Support Clamp | |
HR-500D （digital display） | 0.2-7000ml | 8000-28000rpm | HR500-25G | ≤120℃ | Double Column Support Clamp |

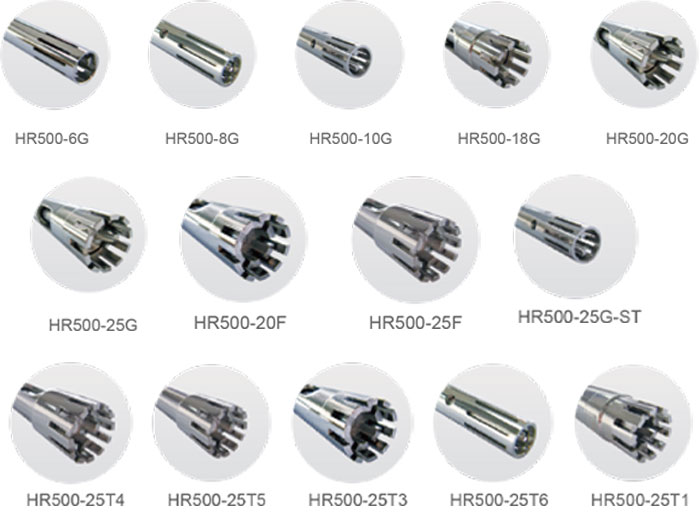

Working Head Selelction Guide
Model | Capacity | Viscosity | Maximum Linear Speed | Stator Diameter | Material |
HR500-6G | 0.2-10ml | 100cp | 6m/s | 6mm | SS316L |
HR500-8G | 1-60ml | 100cp | 8m/s | 8mm | SS316L |
HR500-10G | 10-150ml | 200cp | 10m/s | 10mm | SS316L |
HR500-18G | 50-1500ml | 3000cp | 19m/s | 18mm | SS316L、PTFE |
HR500-20G | 50-1500ml | 3000cp | 19m/s | 18mm | SS316L |
HR500-25G | 100-5000ml | 5000cp | 27m/s | 25mm | SS316L、PTFE |
HR500-18F | 50-1500ml | 2000cp | 19m/s | 18mm | SS316L |
HR500-20F | 50-1500ml | 3000cp | 19m/s | 20mm | SS316L、PTFE |
HR500-25F | 100-500ml | 3500cp | 27m/s | 25mm | SS316L、PTFE |
HR500-25GST | 100-5000ml | 5000cp | 27m/s | 25mm | SS316L、PTFE |
HR500-25T1 | 100-7000ml | 8000cp | 27m/s | 25mm | SS316L、PTFE |
HR500-25T3 | 100-3000ml | 5000cp | 27m/s | 25mm | SS316L、PTFE |
HR500-25T4 | 100-5000ml | 5000cp | 27m/s | 25mm | SS316L、PTFE |
HR500-25T5 | 50-5000ml | 5000cp | 27m/s | 25mm | SS316L、PTFE |
HR500-25T6 | 50-5000ml | 5000cp | 35m/s | 25mm | SS316L、PTFE |
Functional Description for Each Working Head
Model | Functional Description |
HR500-6G HR500-8G HR500-10G | It is suitable for dispersing, breaking and homogenizing animal and plant tissues |
HR500-18G HR500-20G HR500-25G | Suitable for medium and above viscosity of solid-liquid mixing, oil-water emulsification, cream preparation, emulsification polymerization, silicone oil emulsification, homogenization, etc. |
HR500-18F | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsification polymerization, silicone oil emulsification, homogenization, etc. |
HR500-20F | Suitable for medium and above viscosity of the solid-liquid mixing, oil suitable for medium and above viscosity of the solid-liquid mixing, oil homogenate, etc. |
HR500-25F | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsification polymerization, silicone oil emulsification, homogenization, etc. |
HR500-25GST | Suitable for medium and above viscosity of solid -liquid mixing, oil-water emulsification, cream preparation, emulsification polymerization, silicone oil emulsification, homogenization, etc. |
HR500-25T1 | In the medium viscosity system, liquid-liquid mixing and dissolution of suspended powder are quickly completed. |
HR500-25T3 | Solid/liquid dispersion mixed, suitable for wet Mo, effectively reduce the size of materials, increase uniformity. |
HR500-25T4 | Super dispersing, tissue crushing, suitable for crushing, homogenizing, dispersing and shearing of animal and plant tissues |
HR500-25T5 | Suitable for dispersion and homogenization of medium and high viscosity system. |
HR500-25T6 | Super high-speed mixing, suitable for the dis-solution and dispersion of medium and high viscosity system |
