What is Heating Magnetic Stirrer?

The heating type magnetic agitator is suitable for stirring or heating and stirring at the same time. It is suitable for liquid or solid liquid mixture with low viscosity. The principle of magnetic field and vortex is used to put the liquid into the container and then the agitator is put into the liquid at the same time. When the magnetic field is generated on the base, the agitator moves in a circular motion to achieve the purpose of stirring the liquid. With the temperature control device, the sample temperature can be controlled and maintained according to specific experimental requirements, helping experimenters to set experimental conditions, greatly improving the possibility of experimental repeatability.

The heating magnetic stirrer can be divided into TWO types: HS-20 series non-digital display and HS-20D series digital display, which are suitable for liquid or solid-liquid mixtures with low viscosity and mainly used in chemical synthesis, analytical chemistry and life science.

Features

  • LCD display, real-time display of heating, stirring and time parameters;(HS -20D series only);
  • LCD display screen with backlight design, convenient for parameter setting and monitoring;
  • Brushless motor drive, wide speed range, longer service life;
  • Timing function, easy to control the stirring and heating time;(HS-20D series only);
  • Run the lock function to prevent unexpected changes to the running state;
  • Double heating control circuit can keep the temperature stable when one heating circuit fails. The heating function is independently controlled, and after heating is turned on, the button is highlighted for easy operation;
  • The heat insulation shell with aluminum seal can effectively prevent liquid and gas from entering the instrument and protect the circuit elements from corrosion;
  • Ceramic coating, highly resistant to corrosion, easy to clean light plate surface accidentally dripping solvents, oil or other pollutants.

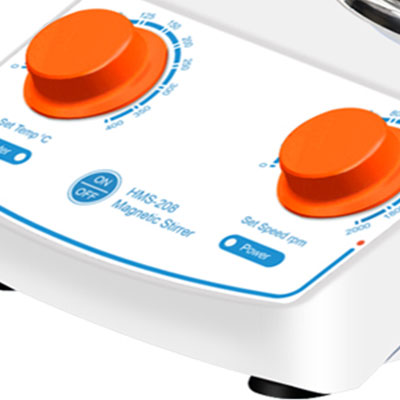

Large Knob Design (HMS-205/208)

Scale display, equipped with large knob, can directly adjust the temperature and speed.

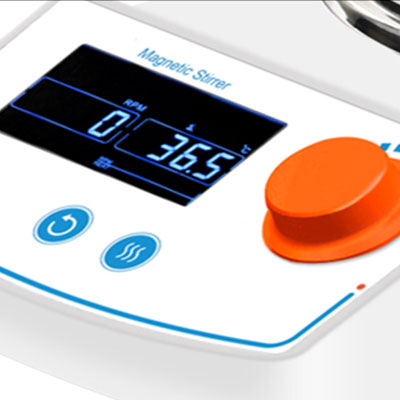

Large LCD Display (HMS-205D/208D)

Liquid crystal display, convenient for observation, real-time display of speed and temperature.

HMS Series Heating Magnetic Stirrer Model Introduction

Model

Maximum Stirring Quantity

Speed Range

Disk Material

Display Mode

Temperature Control Range

HMS-205

20L

100-2000rpm

Stainless steel ceramic coating

RT+5~250℃

HMS-205D

20L

100-2000rpm

Stainless steel ceramic coating

LCD

RT+5~250℃

HMS-208

20L

100-2000rpm

Aluminum die-cast ceramic coating

RT+5~250℃

HMS-208D

20L

100-2000rpm

Aluminum die-cast ceramic coating

LCD

RT+5~350℃
