What is Hand-held Ultrasonic Homogenizer?

Hand-held Ultrasonic Homogenizer is a multifunctional device that uses ultrasonic wave to produce cavitation effect in liquid. Used for crushing, emulsifying, dispersing, homogenizing, extracting, defoaming, cleaning and nano materials,preparation and acceleration of chemical reactions.

The instrument with led screen display, automatic and manual two working modes, ultrasonic time, power stable, sample temperature detection display, automatic frequency tracking and other functions. It is good ultrasound treatment for small volume samples.

Features

It can be used to control ultrasonic inching with hand-held ultrasonic energy device after 96-well enzyme labeling and countless small test tubes are arranged. So that countless samples can complete the ultrasonic processing in a short time.

Hand-held Ultrasonic Homogenizer Model Introduction

Model

Volume

Power

Standard Horn

(optional)

UP-250

0.1-150ml

2.5- 250W

φ5mm

φ2、3、5、6mm

UP-400

0.1-300ml

4- 400W

φ5mm

φ2、3、5、6mm

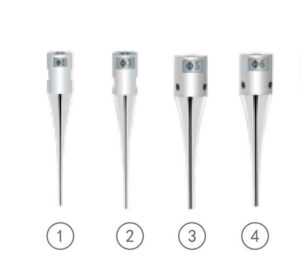

Hand-held Ultrasonic Homogenizer Selelction Guide

Horn No.

Dia (mm)

Capacity (ml)

UP-250

UP-400

No.1

φ2

0.2-5

No.2

φ3

3-10

No.3

φ5

5-100

No.4

φ6

10-100
