What is Hand-held Homogenizer?

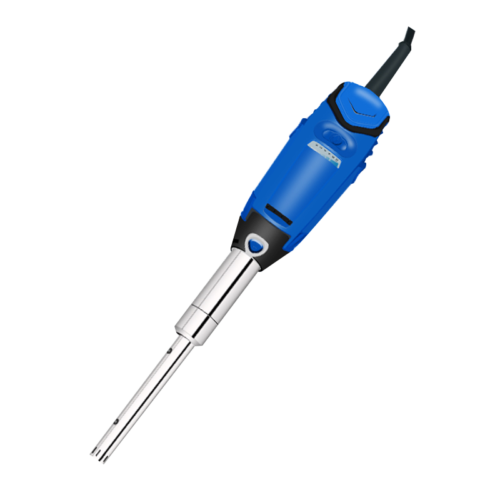

HR-6 HR-6B is a handheld/stent-supported small, fast tissue homogenizer, dispersion and emulsifier, suitable for 0.2-50mL,1-150ml liquid/liquid, liquid/solid samples with different dispersion heads, up to 35000rpm.Applied in biopharma-ceutical, gene research, tissue fragmentation, cytoplasmosis, pathological analysis, oil-water emulsification, nanomaterial dispersion, dairy homogenization, polymerization reaction, daily cosmetics, Ink coating, fine chemicals, pesticides, mineral exploration, environmental protection, energy and other fields.

HR-10B is a portable device with imported motor, with optional dispensering head can deal with 0.2 -150ml capacity sample. Stand is optional accessories ,not selling in a set. It is apply for outdoor or laboratory, with rechargeable lithium battery, very convenient to work.

Features

  • The design is light and portable, which can be operated with one hand;
  • Reusable, easy to remove, easy to clean;
  • High quality 316L stainless steel dispersion head, corrosion resistance, high temperature disinfection;
  • Dispersion head easy to disassemble, easy to clean;
  • High speed and high efficiency motor, double insulation protection, ensure safety;
  • Can be mixed, dispersed, emulsified, homogenized and other operations;
  • Suitable for batch processing of fluid materials in small container, such as muscle, viscera, fiber, etc.
HR-6 HR-6B
HR-10B

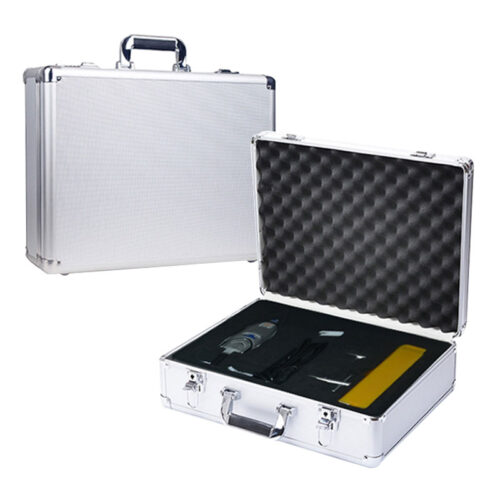

Aluminum Alloy Package (HR-6B)

Hand-held Homogenizer Model Introduction

Model

Type

Processing Volume

Speed Range

Standard Working Head

HR-6

Domestic Motor

0.2-150ml

5000-35000rpm

10G

HR-6B

Imported Motor,

Aluminum Alloy Package

0.2-150ml

1000-35000rpm

10G

HR-10B

Portable, Lithium Battery Powered

0.2-80ml

5000-30000rpm

10G

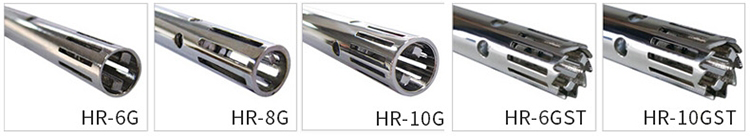

Hand-held Ultrasonic Homogenizer Selelction Guide

Item

Capacity

Viscosity

Maximum Linear Speed

Working Head Length

Working Head Diameter

Working Head Material

6G

0.2-5ml

100cp

5m/sec

125mm

6mm

316

6G-ST

0.2-50ml

100cp

5m/sec

125mm

6mm

316

8G

10-60ml

500cp

8m/sec

150mm

8mm

316

10G

30-150ml

2000cp

10m/sec

185mm

10mm

316

10G-ST

30-150ml

2000cp

10m/sec

185mm

10mm

316
