FJ high speed dispersing homogenizer is driven by compact series excited micro high-speed motor, which is suitable for crushing experimental materials in liquid in laboratory further dispersion and homogeneity in the medium. It is composed of high-density die-casting aluminum alloy as the driving machine, high quality stainless steel refined dispersive homogeneous working head and speed regulating machine stand. It has the characteristics of high driving speed, high output power, convenient loading and unloading of working head and easy operation of experiment.
What is High Speed Dispersing Homogenizer?
Features
- The driving motor adopts series micro-motor with large output power and compact structure, which is safe and reliable in design;
- All parts of working head contacting materials are made of high-quality stainless steel with good corrosion resistance;
- The working head is connected with the driving motor by a coupling, which is easy to disassemble and assemble;
- The stepless governor was used with the speed regulating frame, which is convenient for speed regulation and stable operation.

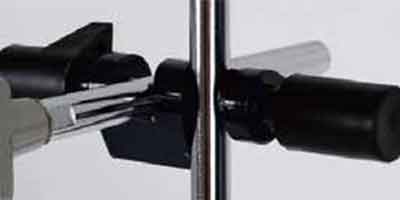

Securing Clip
Flexible Securing clip, height adjustable

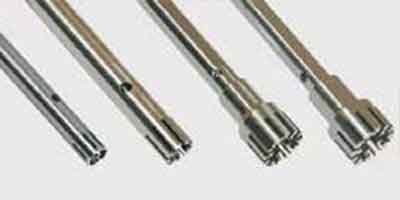

Stirring Head
Made of stainless steel, it is not easy to corrode, and the mixing performance is high. Fortunately, it meets the different needs of the laboratory.

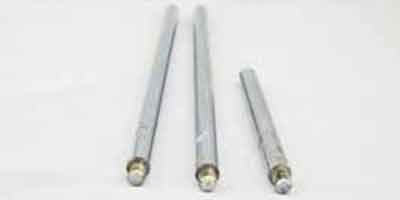

Stainless Steel Column
Each product is equipped with stainless steel columns, which are not easy to rust, durable and easy to clean.

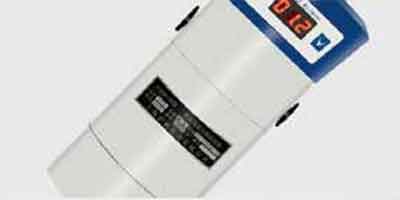

Aluminum Metal Case
Ensure mechanical precision for long-lasting use; ensure electrical performance for continuous use; ensure stable operating conditions and low noise.
FJ High Speed Dispersing Homogenizer Model Introduction
Photo | Model | Processing Volume | Speed Range | Standard Working Head | ||
 | FJ200 | / | 30-1500ml | 300-23000rpm | φ12，φ18 | |
 | FJ200-SH | Digital Display | 30-1500ml | 300-23000rpm | φ12，φ18 | |
| | FJ300-SH | Digital Display | 100-13000ml | 300-18000rpm | φ28，φ36 |
Optional Working Head for FJ Series
Model | Capacity | Viscosity | Rotor Linear Velocity | Invasion Liquid Height | Stator Diameter | Working Head Length |
12G | 30-800ml | 1000mPa.S | 11s/m | 25/85mm | φ12 | 150mm |
18G | 50-1500ml | 2000mPa.s | 15s/m | 30/120mm | φ18 | 190mm |
28G | 100-1800ml | 6000mPa.s | 19s/m | 60/155mm | φ28 | 235mm |
36G | 150-13000ml | 7000mPa.s | 27s/m | 60/160mm | φ36 | 240mm |
